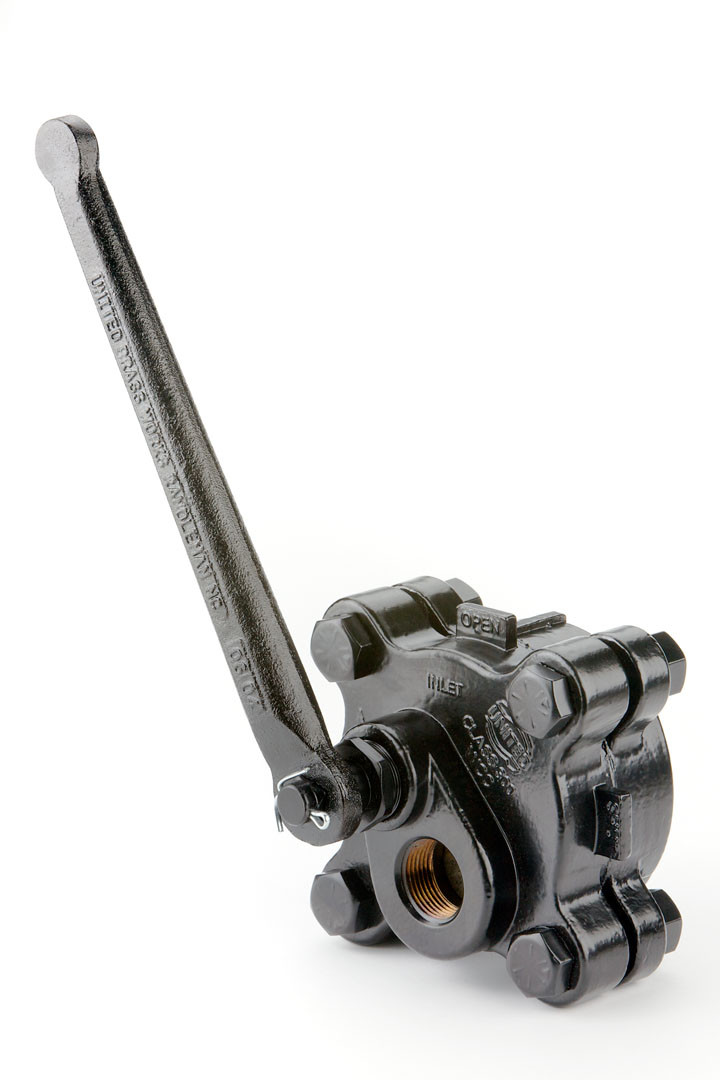

Model 425 – 2″
Model 425 – 2″
Applications:
Class 300
ANSI B16.34
600 psi Working Steam Pressure @ 500F
740 psi @ 100F
100% Pressure Tested
Maximum Boiler Blow-Off Pressure 480 psi per Sec. 1 Table A-361
Threaded Ends
High Temp. Powder Coating for Corrosion Resistance
CRM OCO7135.2, 24, 25, 26
CRM OEO2171.7, 79, 70, 78, 7AY, 7T, 7N
The United Brass quick-opening boiler blowdown valve has been designed for the rugged boiler treatment and scale service. The cast steel knife gate valve conforms to Class 300 of ANSI B16.34 and features a stainless steel seat and disc hardened to Rockwell 60. ASME Boiler and Pressure Vessel Code Sections 1 PG-42.1.122 and Power Piping Code AS
