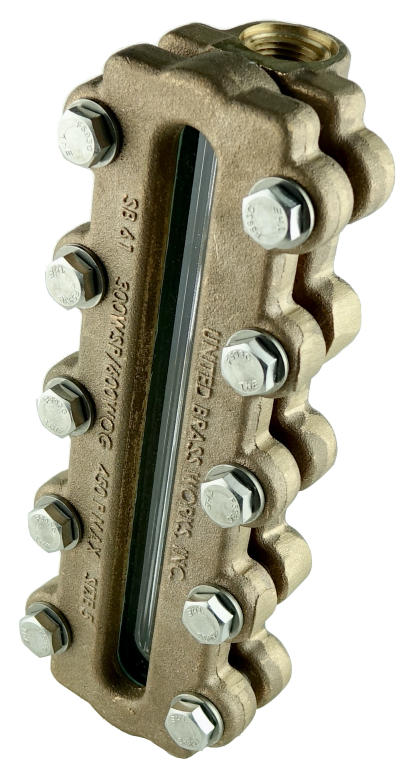

Model 897 Bronze Size 5 Site Glass
Model 897 Bronze Size 5 Site Glass
Applications: Water/Steam
300 WSP @ 450 ° F Max
600 WOG @ Ambient Temperature
100% Pressure Tested @ 900 PSI ● Threaded Ends 1/2” FNPT
Designed to Boiler and Pressure Vessel Code Section 1 & ASME B31.1
Install Using Supplied Nipples Only Along with United Brass Gauge Valve Sets to Maintain 11 1/2”
Center-To-Center Dimensions
Viewable Area 7 3/4”
*Contains Lead. Not For Use in Potable Water Systems*
600 WOG @ Ambient Temperature
100% Pressure Tested @ 900 PSI ● Threaded Ends 1/2” FNPT
Designed to Boiler and Pressure Vessel Code Section 1 & ASME B31.1
Install Using Supplied Nipples Only Along with United Brass Gauge Valve Sets to Maintain 11 1/2”
Center-To-Center Dimensions
Viewable Area 7 3/4”
*Contains Lead. Not For Use in Potable Water Systems*
